Description

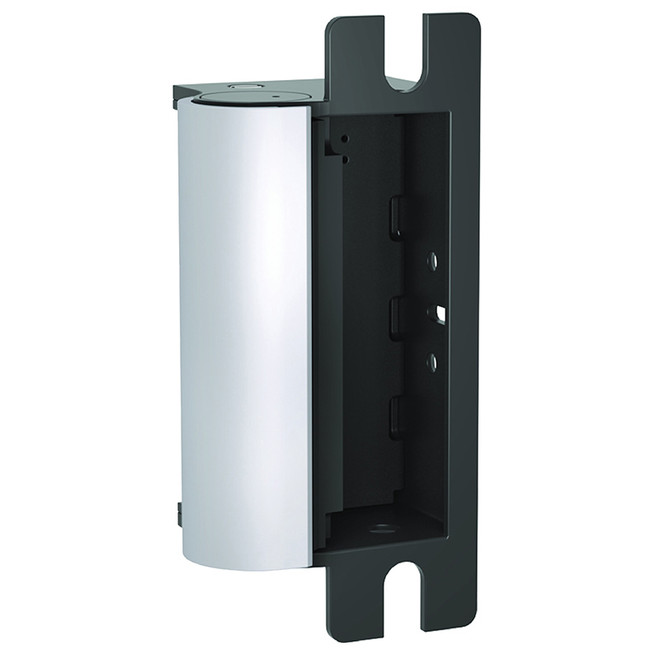

HES 1006-630-LBSM Fail Secure
HES model 1006-630-LBSM is a fail secure, finished in Satin Stainless Steel (630/US32D). This version: Universal 12/24VDC Electric Strike, Body Only, Latchbolt Strike Monitor. It operates on 12/24VDC and is fail secure.
About this electric strike
An electric strike replaces the standard strike in the door frame so an access control system, keypad or push button can release the door while the lock stays in place. Fail secure strikes stay locked when power is off, and fail safe strikes unlock without power. The strike has to match the latch it works with (cylindrical, mortise or rim exit device), and the frame type and voltage.
Features
- UL 10C fire-rated, 3 hour single door (fail secure only)
- UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
- CAN4-S104(ULC-S104) fire door conformant
- ANSI A250.13-2003 windstorm listed
- UL 1034 burglary-resistant listed and suitable for outdoor use
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
Specifications
| Brand | HES |
|---|---|
| Model / SKU | 1006-630-LBSM |
| Manufacturer part number | 1006 630 LBSM |
| Product type | Fail Secure |
| Series | 1006 Series Electric Strikes |
| Finish | Satin Stainless Steel – BHMA 630, US32D |
| Voltage | 12/24VDC |
| Fail mode | Fail secure |
| Function | Electrically Unlocked (Fail Secure) |
| Operating Voltage | 12VDC/24VDC |
| Amp Draw | .45 @ 12V .25 @ 24V |
| Keeper Size | 1 In. |
| Configuration | Universal |
| Use With | Cylindrical Locks, Mortise Exit and Latch Locks |
| Fire Rated | Yes |
| Holding Force | 3000 |
| Switch Type | LBSM |
| Frame Application | Metal or Wood |
Questions and answers
Fail safe or fail secure?
Fail secure keeps the door locked from outside during a power loss, and free egress still comes from the lock's inside lever. Fail safe unlocks without power and is used where code requires the door to release. Your local code and installer decide.
Will it work with my lock?
Check the latch type (cylindrical, mortise or rim exit), the latchbolt projection and the frame (hollow metal, aluminum or wood). Call us with your lock model and we'll confirm.
Questions about fit, finish or keying? Call Security Lock Supply at (877) 202-8118.
