Von Duprin 22TP 3 689 Grade 1 Rim Exit Device

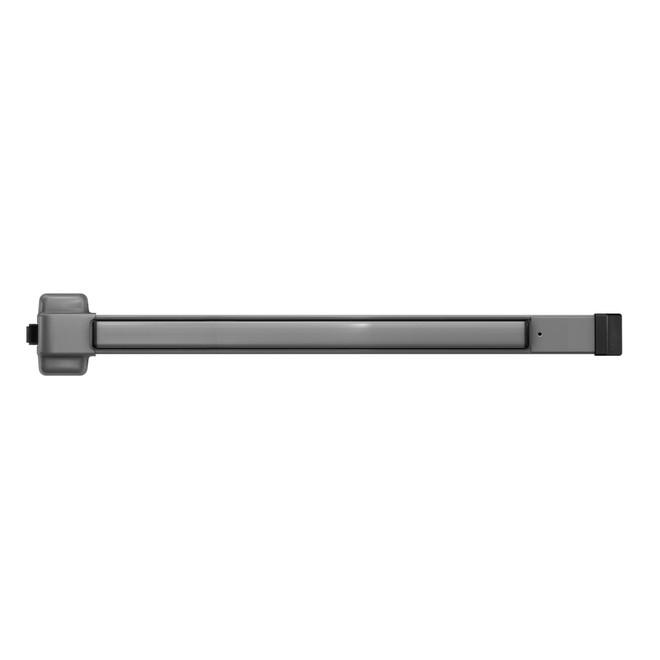

The Von Duprin 22TP 3 689 is a grade 1 rim exit device, finished in Aluminum Painted (689/SP28). Configuration: Wide Stile Pushpad, 36", Classroom Auxiliary Thumbturn Control, Thumbpiece Pull, Hex Key Dogging.
About this exit device
Exit devices (panic bars) let anyone leave with a single push on the bar, which is why building codes require them on many assembly, school and commercial egress doors. The device type sets how the door latches: a rim device latches to a strike on the frame, surface vertical rod (SVR) and concealed vertical rod (CVR) devices latch at the top and bottom of the door, and a mortise device uses a lock body set into the door edge. Outside access depends on the trim you pair with it.
Features
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
- Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
- Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
- Latch bolt: Deadlocking, 3 /4" (19 mm) throw
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
Specifications
| Brand | Von Duprin |
|---|---|
| Model / SKU | 22TP 3 689 |
| Product type | Grade 1 Rim Exit Device |
| ANSI/BHMA grade | Grade 1 |
| Finish | Aluminum Painted – BHMA 689, SP28 |
| Configuration | Wide Stile Pushpad, 36", Classroom Auxiliary Thumbturn Control, Thumbpiece Pull, Hex Key Dogging, Non-Handed |
Questions and answers
Do I need fire exit hardware?
Doors that are fire rated need fire exit hardware (usually marked with an F in the model number), which has no mechanical dogging. Check the label on the door and frame, or ask us.
Does it come with outside trim?
Exit devices are often sold without trim so you can choose the outside function. Check the specifications on this page or call us to match a lever, pull or cylinder trim.
Questions about fit, finish or keying? Call Security Lock Supply at (877) 202-8118.
