Description

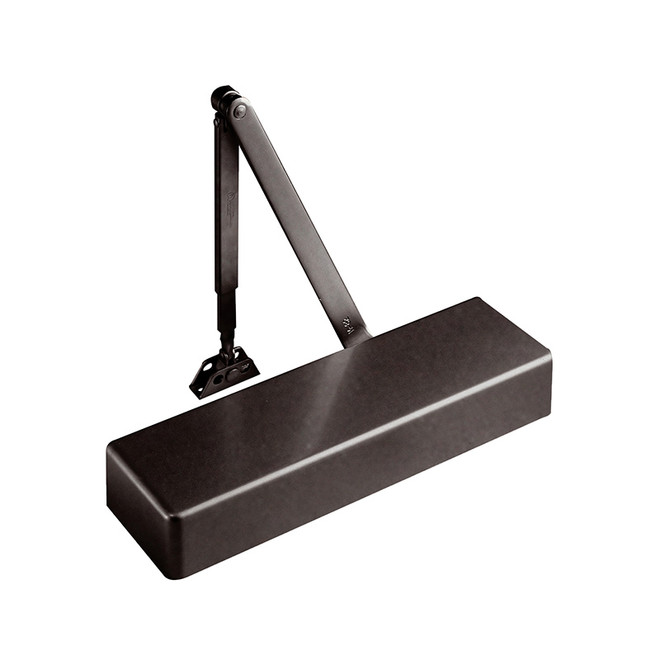

Yale 4400 690 Door Closer
Yale model 4400 690 is a door closer, finished in Dark Bronze Painted (690/SP313). Configuration: Tri-Packed (Regular, Parallel, Top Jamb Mount), Non-Hold Open, Size 1-6.
About this door closer
A door closer controls how a door closes and latches, so it shuts fully and safely after each use. Commercial closers have separate adjustments for closing speed, latching speed and backcheck, which slows the door if it is thrown open. The arm and mounting (regular, parallel or top jamb) depend on which side of the door the closer goes and whether you need hold open.
Features
- Exceeds 10 million cycles
- Cast aluminum body
- Adjustable spring sizes 1 through 6 (ADA Compliant)
- Tri-packed (regular arm, top jamb, and parallel arm mounting)
- Rack and pinion body
- Staked valves
- Separate and independent, latch, sweep and backcheck intensity valves • Non-handed
Specifications
| Brand | Yale |
|---|---|
| Model / SKU | 4400 690 |
| Product type | Door Closer |
| Series | Yale 4400 Series Door Closers |
| Finish | Dark Bronze Painted – BHMA 690, SP313 |
| Type | Surface |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Hold Open | No |
| Closer Size | Adj. 1 to 6 |
Questions and answers
How do I pick the arm and mounting?
Regular arm mounts on the pull side; parallel arm mounts on the push side and is common on exterior and high-traffic doors; top jamb mounts on the frame stop. Hold open and cush arms add a hold-open or a stop.
What size closer do I need?
Size depends on door width, weight and location. Many closers are adjustable across sizes; check the specifications or ask us.
