Description

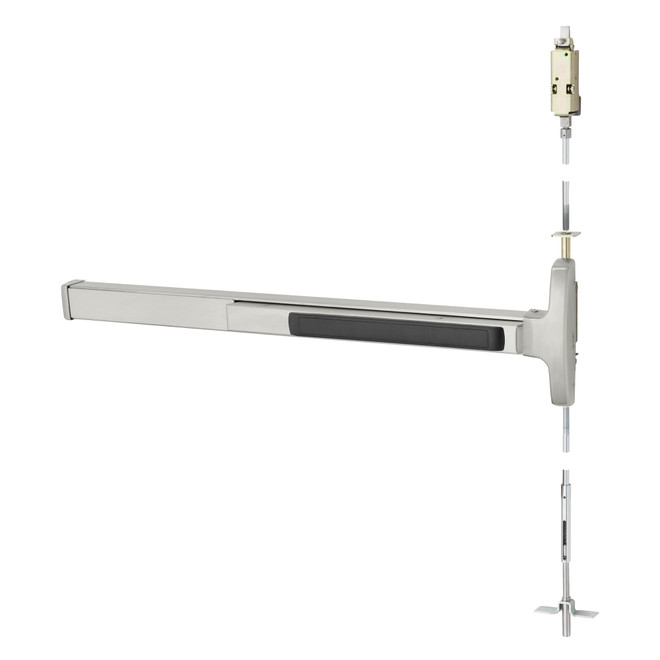

Sargent 56-AD8410F RHR 32D Grade 1 Concealed Vertical Rod Exit Device
Sargent model 56-AD8410F RHR 32D is a grade 1 concealed vertical rod exit device, finished in Satin Stainless Steel (630/US32D). Configuration: Narrow Stile Pushpad, 36" Device, Exit Only, Electric Latch Retraction, Less Dogging.
About this exit device
Exit devices (panic bars) let anyone leave with a single push on the bar, which is why building codes require them on many assembly, school and commercial egress doors. The device type sets how the door latches: a rim device latches to a strike on the frame, surface vertical rod (SVR) and concealed vertical rod (CVR) devices latch at the top and bottom of the door, and a mortise device uses a lock body set into the door edge. Outside access depends on the trim you pair with it.
Features
- Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
- Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
- Mounting Fasteners Supplied standard with machine screws
- Top Bolt Stainless steel
- Door/Opening Height Must be specified - 120" (3048mm) Max Door Opening
- Center Case Dimensions 8-3/8" (213mm) x 2-5/8" (67mm)
- Projection Pushbar Neutral – 3" (76 mm) Pushbar Depressed – 2-1/8" (54mm)
Specifications
| Brand | Sargent |
|---|---|
| Model / SKU | 56-AD8410F RHR 32D |
| Product type | Grade 1 Concealed Vertical Rod Exit Device |
| ANSI/BHMA grade | Grade 1 |
| Finish | Satin Stainless Steel – BHMA 630, US32D |
| Configuration | Narrow Stile Pushpad, 36" Device, Exit Only, Electric Latch Retraction, Less Dogging, Right Hand Reverse |
Questions and answers
Do I need fire exit hardware?
Doors that are fire rated need fire exit hardware (usually marked with an F in the model number), which has no mechanical dogging. Check the label on the door and frame, or ask us.
Does it come with outside trim?
Exit devices are often sold without trim so you can choose the outside function. Check the specifications on this page or call us to match a lever, pull or cylinder trim.
Questions about fit, finish or keying? Call Security Lock Supply at (877) 202-8118.
