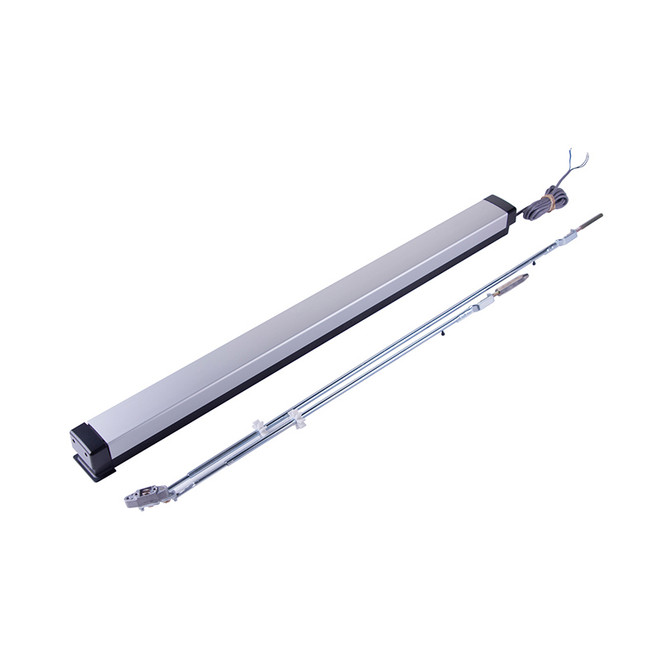

Adams Rite 8611LR-30 CVR Exit Device
Adams Rite model 8611LR-30 is a CVR exit device. Key details: Narrow Stile Aluminum Door, 30", Electric Latch Retraction, Aluminum.
About this exit device
Exit devices (panic bars) let anyone leave with a single push on the bar, which is why building codes require them on many assembly, school and commercial egress doors. The device type sets how the door latches: a rim device latches to a strike on the frame, surface vertical rod (SVR) and concealed vertical rod (CVR) devices latch at the top and bottom of the door, and a mortise device uses a lock body set into the door edge. Outside access depends on the trim you pair with it.
Features
- Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
- Handing: Device is non-handed. Lever Entry Trim is field reversible.
- Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
- Bar Height: Standard model adjusts from 30” to 44”.
- Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
- Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
- Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
- Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
Specifications
| Brand | Adams Rite |
|---|---|
| Model / SKU | 8611LR-30 |
| Product type | CVR Exit Device |
| Series | 8000 Series Exit Devices |
| Physical Appearance | Narrow Stile Pushpad |
| Device Type | Concealed Vertical Rod |
| Mechanical Function | Universal |
| Device Length | 30 In. |
| Hand | Non-Handed |
| Electric Options | Electric Latch Retraction |
| Includes Trim | No |
| Minimum Stile Size | 2 In. |
| Door Height | 8 Ft. |
| Door Thickness | 1-3/4 In. - 2-1/4 In. |
| Fire Rated | No |
Questions and answers
Do I need fire exit hardware?
Doors that are fire rated need fire exit hardware (usually marked with an F in the model number), which has no mechanical dogging. Check the label on the door and frame, or ask us.
Does it come with outside trim?
Exit devices are often sold without trim so you can choose the outside function. Check the specifications on this page or call us to match a lever, pull or cylinder trim.
Questions about fit, finish or keying? Call Security Lock Supply at (877) 202-8118.
