Description

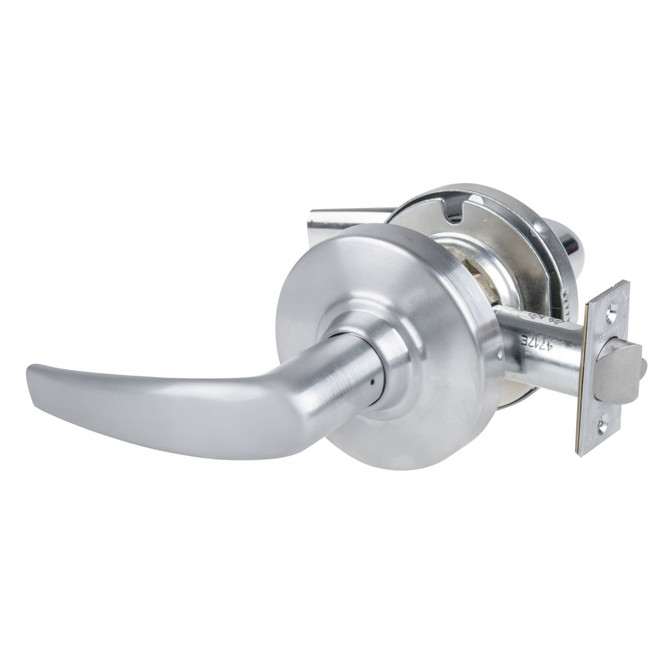

Schlage ALX10 8AT 626AM Grade 2 Passage Cylindrical Lock with Field Selectable Vandlgard
This Schlage ALX10 8AT 626AM is a grade 2 passage cylindrical lock with field selectable Vandlgard, finished in Satin Chrome, Antimicrobial (626AM/US26D). This version: Athens Tactile Lever, Non-Keyed, Non-handed.
How the passage function works
Both sides are always free. There is no locking, so it suits hallways, closets and interior doors that never need to be secured.
About this cylindrical lock
A cylindrical (bored) lock installs through a round hole in the door and a smaller hole in the edge, so it is quick to install and replace. The function sets how the inside and outside levers or knobs lock, and the ANSI/BHMA grade indicates durability: Grade 1 is the heaviest duty.
Features
- Captured screws in latch, strike and inside spring cage eliminate small, loose parts
Specifications
| Brand | Schlage |
|---|---|
| Model / SKU | ALX10 8AT 626AM |
| Product type | Grade 2 Passage Cylindrical Lock with Field Selectable Vandlgard |
| ANSI/BHMA grade | Grade 2 |
| Finish | Satin Chrome, Antimicrobial – BHMA 626AM, US26D |
| Configuration | Athens Tactile Lever, Non-Keyed, Non-handed |
Questions and answers
Will it fit my existing door?
Most commercial cylindrical locks use a 2-1/8" bore with a 2-3/4" backset. Check the backset and door thickness in the specifications, or ask us.
Is it handed?
Most lever locks are field reversible. If the specifications list a hand, order the matching hand.
Questions about fit, finish or keying? Call Security Lock Supply at (877) 202-8118.
