Description

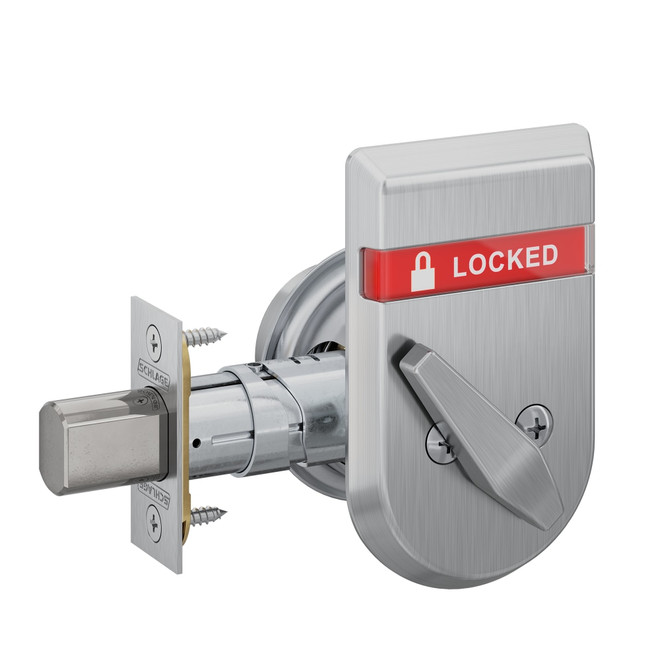

Schlage B560P 626 IS-LOC Grade 2 Single Cylinder Deadbolt
Schlage model B560P 626 IS-LOC is a grade 2 single cylinder deadbolt, finished in Satin Chrome (626/US26D). Configuration: Keyed Outside/Thumbturn Inside, 6-Pin Cylinder, Inside Indicator 'UNLOCKED/LOCKED', 12-288 Latch, 10-094 Strike.
About this deadbolt
A deadbolt adds a bolt that can't be pushed back without a key or thumbturn, adding security to the main latch. A single cylinder deadbolt has a key outside and a thumbturn inside; a double cylinder has a key on both sides, which some codes restrict on egress doors.
Features
- Adjustable backset with lock-in-place helix design
- Integrated anti-pry shield protects latch
- Thicker metal security strike back-up on jamb side
- Security strike on jamb has third screw for stronger, deeper anchoring
- Added space inside strike box for true deadlatch
- Seamless steel latch construction along the entire length of the bolt housing
- 10% larger diameter deadbolt
- Zinc bolt with spinning hardened steel pin inside
Specifications
| Brand | Schlage |
|---|---|
| Model / SKU | B560P 626 IS-LOC |
| Product type | Grade 2 Single Cylinder Deadbolt |
| ANSI/BHMA grade | Grade 2 |
| Finish | Satin Chrome – BHMA 626, US26D |
| Configuration | Keyed Outside/Thumbturn Inside, 6-Pin Cylinder, Inside Indicator 'UNLOCKED/LOCKED', 12-288 Latch, 10-094 Strike, 1-3/8' - 1-7/8' Door Thickness |
Questions and answers
Single or double cylinder?
Single cylinder allows quick exit with the thumbturn. Double cylinder needs a key on both sides, so check local code before using it on an exit door.
Questions about fit, finish or keying? Call Security Lock Supply at (877) 202-8118.
