Description

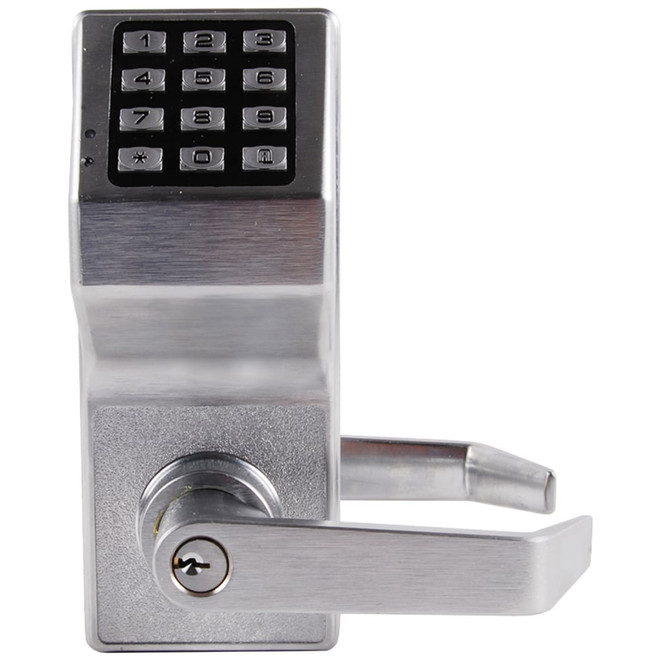

Alarm Lock DL3200IC-S US26D Pushbutton Cylindrical Door Lock
This Alarm Lock DL3200IC-S US26D is a pushbutton cylindrical door Lock, finished in Satin Chrome (626/US26D). This version: Schlage I/C Prep, 300 Users, 1600 Event Audit Trail, Weatherproof.
About this cylindrical lock
A cylindrical (bored) lock installs through a round hole in the door and a smaller hole in the edge, so it is quick to install and replace. The function sets how the inside and outside levers or knobs lock, and the ANSI/BHMA grade indicates durability: Grade 1 is the heaviest duty.
Features
- 2000 user codes (3-6 digits) Multilevel security - Master; manager; supervisor; basic users
- Program at keypad or with PC-and/or data-transfer module
- 40,000 event audit trail logs with time-/date-stamp of access by user; create PC reports or at hand-held wireless printer
- 500 scheduled lock/unlock events
- Quick passage mode (without being in program mode)
- Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
- 5AA Battery operated; 80,000 cycles, typical
Specifications
| Brand | Alarm Lock |
|---|---|
| Model / SKU | DL3200IC-S US26D |
| Product type | Pushbutton Cylindrical Door Lock |
| Finish | Satin Chrome – BHMA 626, US26D |
| Configuration | Schlage I/C Prep, 300 Users, 1600 Event Audit Trail, Weatherproof |
Questions and answers
Will it fit my existing door?
Most commercial cylindrical locks use a 2-1/8" bore with a 2-3/4" backset. Check the backset and door thickness in the specifications, or ask us.
Is it handed?
Most lever locks are field reversible. If the specifications list a hand, order the matching hand.
Questions about fit, finish or keying? Call Security Lock Supply at (877) 202-8118.
