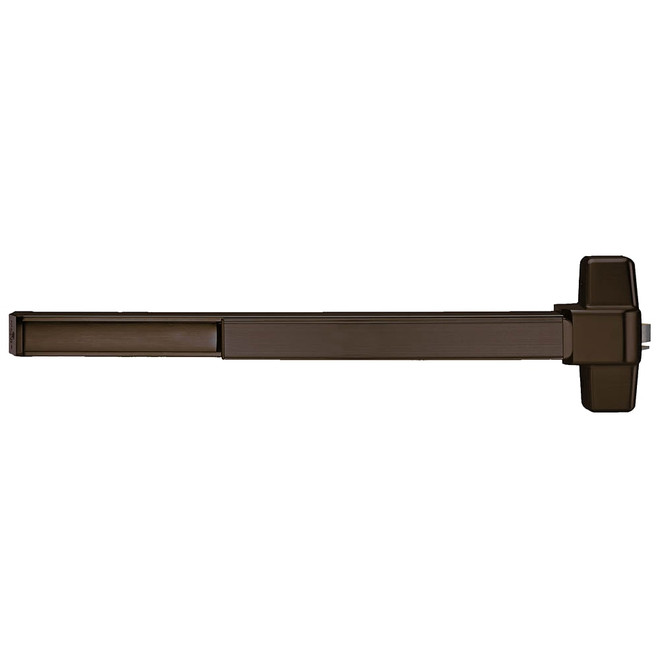

Marks USA M9900F/10B-48 Grade 1 Rim Exit Bar
This Marks USA M9900F/10B-48 is a grade 1 rim exit bar, finished in Satin Bronze (612/US10). Key details: Wide Stile Pushpad, 48' Fire-Rated Device, Exit Only, Less Dogging, Non-Handed.
About this exit device
Exit devices (panic bars) let anyone leave with a single push on the bar, which is why building codes require them on many assembly, school and commercial egress doors. The device type sets how the door latches: a rim device latches to a strike on the frame, surface vertical rod (SVR) and concealed vertical rod (CVR) devices latch at the top and bottom of the door, and a mortise device uses a lock body set into the door edge. Outside access depends on the trim you pair with it.
Features
- Ultra-Durable, heavy gauge extrusion
- Marks Lifetime Mechanical Warranty
- Steel flush mounted Panic ProtectorTM End Cap
- Easy Installation & Retrofits All Popular Preps
- ANSI 156.3 (2001), Grade 1
- M9900 is 3 Hour Fire Rated Dead Latch Bolt; Stainless Steel 3/4" Throw
Specifications
| Brand | Marks USA |
|---|---|
| Model / SKU | M9900F/10B-48 |
| Product type | Grade 1 Rim Exit Bar |
| ANSI/BHMA grade | Grade 1 |
| Finish | Satin Bronze – BHMA 612, US10 |
| Configuration | Wide Stile Pushpad, 48' Fire-Rated Device, Exit Only, Less Dogging, Non-Handed |
Questions and answers
Do I need fire exit hardware?
Doors that are fire rated need fire exit hardware (usually marked with an F in the model number), which has no mechanical dogging. Check the label on the door and frame, or ask us.
Does it come with outside trim?
Exit devices are often sold without trim so you can choose the outside function. Check the specifications on this page or call us to match a lever, pull or cylinder trim.
