Description

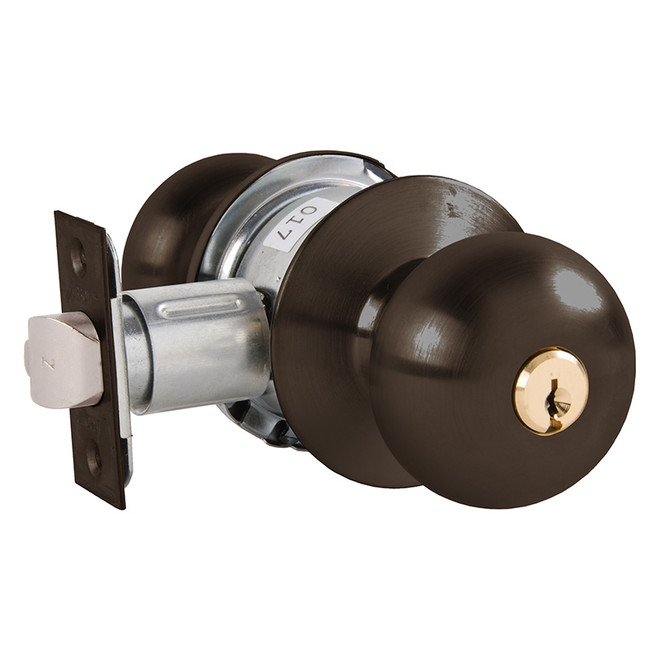

Arrow MK12-TA-10B Storeroom Knob Lock
The Arrow MK12-TA-10B is a storeroom knob lock, finished in Oil-Rubbed Bronze (613/US10B). Configuration: T Knob, A Rose.
How the storeroom function works
The outside is always locked and opens only with a key; the inside is always free. Use it on mechanical rooms, storage and doors that should never be left unlocked.
About this cylindrical lock
A cylindrical (bored) lock installs through a round hole in the door and a smaller hole in the edge, so it is quick to install and replace. The function sets how the inside and outside levers or knobs lock, and the ANSI/BHMA grade indicates durability: Grade 1 is the heaviest duty.
Specifications
| Brand | Arrow |
|---|---|
| Model / SKU | MK12-TA-10B |
| Manufacturer part number | MK12TA 10B |
| Product type | Storeroom Knob Lock |
| Finish | Oil-Rubbed Bronze – BHMA 613, US10B |
| Configuration | T Knob, A Rose |
Questions and answers
Will it fit my existing door?
Most commercial cylindrical locks use a 2-1/8" bore with a 2-3/4" backset. Check the backset and door thickness in the specifications, or ask us.
Is it handed?
Most lever locks are field reversible. If the specifications list a hand, order the matching hand.
Questions about fit, finish or keying? Call Security Lock Supply at (877) 202-8118.
