Schlage ND53JD-CO6 SPA 626 Entrance Lever Lock, Satin Chrome

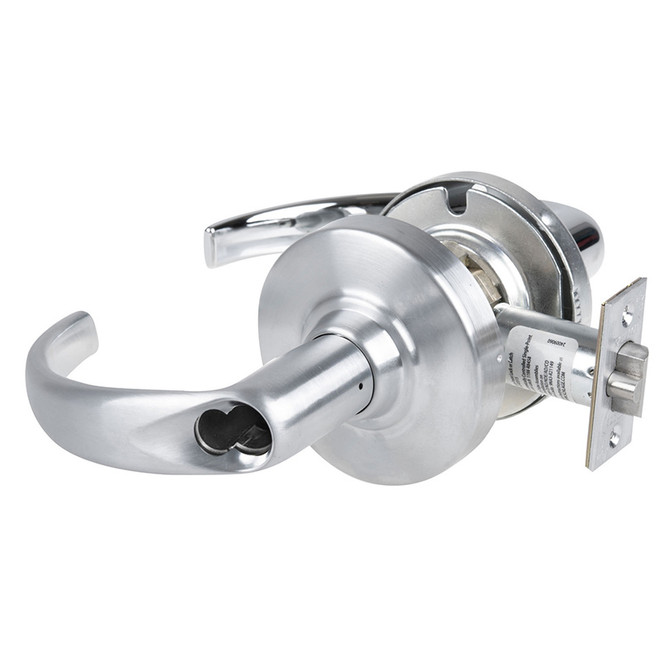

Images may not represent actual product and finish.

Schlage

Schlage ND53JD-CO6 SPA 626 Entrance Lever Lock, Satin Chrome Entrance Lock Function, Grade 1, Cylindrical Lock, Corbin Russwin 6-Pin LFIC Less Core, Sparta Lever, Satin Chrome

$534.00 $1,010.00
(You save $476.00)
SKU:
ND53JD-CO6 SPA 626

Description

Schlage ND53JD-CO6 SPA 626 Entrance Lever Lock

Schlage ND53JD-CO6 SPA 626: a Grade 1 ND Series cylindrical lock with the entrance function, Sparta (SPA) lever and Satin Chrome (626/US26D) finish.

How the Entrance function works

A turn button on the inside locks the outside lever; it stays locked until the turn button is reversed or a key is used outside. The inside lever is always free for exit.

Keying

Prepped for a Corbin Russwin 6-pin large-format interchangeable core (LFIC); the core is not included.

About the ND Series

The Schlage ND Series is the heavy-duty cylindrical lever lock that many architects specify for schools, hospitals, offices and other busy commercial buildings. It is certified to ANSI/BHMA A156.2 Grade 1, the highest cylindrical lock grade, and is UL listed for use on fire-rated doors. Levers are field reversible, so one lock fits left- or right-hand doors, and the lever shapes meet ADA requirements for operation without tight grasping or twisting.

Because the ND fits a standard 161 cylindrical door prep (2-1/8" bore, 2-3/4" backset), it is a common upgrade when replacing worn or lighter-duty locks without re-machining the door.

Specifications

ManufacturerSchlage
Model / SKUND53JD-CO6 SPA 626
Manufacturer part numberND53JD-CO6 SPA 626
SeriesND Series cylindrical lever lock
ANSI/BHMA gradeGrade 1 (A156.2)
FunctionEntrance
Lever designSparta (SPA)
FinishSatin Chrome – BHMA 626, US26D
Cylinder / coreCorbin Russwin 6-Pin LFIC Less Core
Standard backset2-3/4"
Door thickness1-5/8" to 2-1/8" (standard)
HandingNon-handed, field reversible

Questions and answers

Does it come with a cylinder or core?
Prepped for a Corbin Russwin 6-pin large-format interchangeable core (LFIC); the core is not included. We can supply a matching core or cylinder; call (877) 202-8118.

Will it fit my existing door?
It fits a standard cylindrical prep: 2-1/8" bore with a 2-3/4" backset on doors 1-5/8" to 2-1/8" thick. Other backsets and thin-door kits are available; ask us if your door is different.

Is it fire rated?
The ND Series is UL listed for fire-rated doors when installed with a compatible latch and strike.

Which hand door does it fit?
Either. ND levers are field reversible, so the same lock works on left- and right-hand doors.

Need help choosing a function, finish or keying? Call Security Lock Supply at (877) 202-8118.
