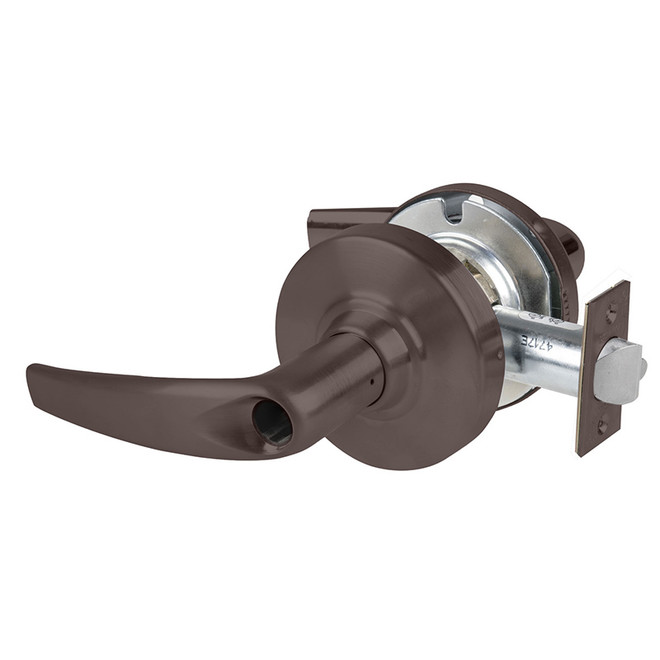

Schlage ND66CD ATH 613 Store Lever Lock
Model ND66CD ATH 613 pairs Schlage's Grade 1 ND Series chassis with the store function, the Athens (ATH) lever and a Oil-Rubbed Bronze (613/US10B) finish.
How the Store function works
A key in either lever locks or unlocks both levers at once. Useful for doors that need to be secured from either side.
Keying
Ships without a cylinder so you can install one keyed to your existing system.
About the ND Series
The Schlage ND Series is the heavy-duty cylindrical lever lock that many architects specify for schools, hospitals, offices and other busy commercial buildings. It is certified to ANSI/BHMA A156.2 Grade 1, the highest cylindrical lock grade, and is UL listed for use on fire-rated doors. Levers are field reversible, so one lock fits left- or right-hand doors, and the lever shapes meet ADA requirements for operation without tight grasping or twisting.
Because the ND fits a standard 161 cylindrical door prep (2-1/8" bore, 2-3/4" backset), it is a common upgrade when replacing worn or lighter-duty locks without re-machining the door.
Specifications
| Manufacturer | Schlage |
|---|---|
| Model / SKU | ND66CD ATH 613 |
| Manufacturer part number | ND66CD ATH 613 |
| Series | ND Series cylindrical lever lock |
| ANSI/BHMA grade | Grade 1 (A156.2) |
| Function | Store |
| Lever design | Athens (ATH) |
| Finish | Oil-Rubbed Bronze – BHMA 613, US10B |
| Cylinder / core | Less Cylinder |
| Standard backset | 2-3/4" |
| Door thickness | 1-5/8" to 2-1/8" (standard) |
| Handing | Non-handed, field reversible |
Questions and answers
Does it come with a cylinder or core?
Ships without a cylinder so you can install one keyed to your existing system. We can supply a matching core or cylinder; call (877) 202-8118.
Will it fit my existing door?
It fits a standard cylindrical prep: 2-1/8" bore with a 2-3/4" backset on doors 1-5/8" to 2-1/8" thick. Other backsets and thin-door kits are available; ask us if your door is different.
Is it fire rated?
The ND Series is UL listed for fire-rated doors when installed with a compatible latch and strike.
Which hand door does it fit?
Either. ND levers are field reversible, so the same lock works on left- and right-hand doors.
