Description

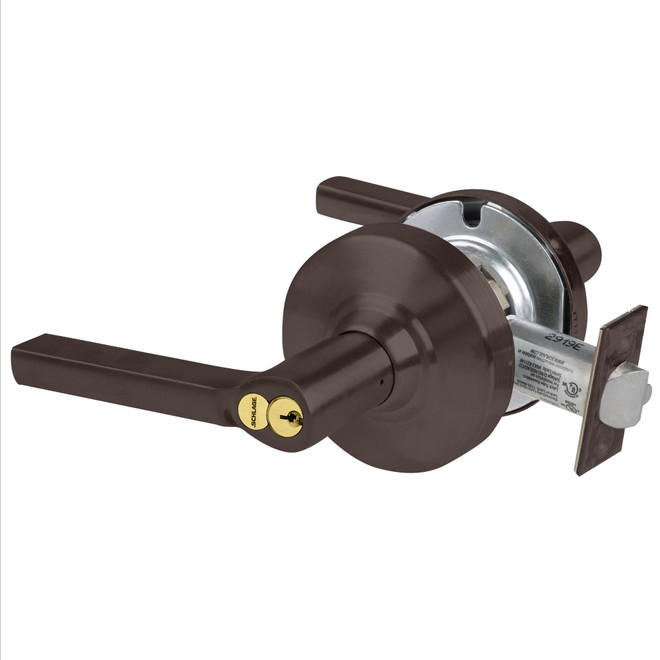

Schlage ALX50R LAT 613 14-042 Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard
This Schlage ALX50R LAT 613 14-042 is a grade 2 office cylindrical lock with field selectable Vandlgard, finished in Oil-Rubbed Bronze (613/US10B). Key details: Latitude Lever, FSIC Core, Anti-Friction Fire Deadlatch, Non-handed.
About this cylindrical lock
A cylindrical (bored) lock installs through a round hole in the door and a smaller hole in the edge, so it is quick to install and replace. The function sets how the inside and outside levers or knobs lock, and the ANSI/BHMA grade indicates durability: Grade 1 is the heaviest duty.
Features
- Captured screws in latch, strike and inside spring cage eliminate small, loose parts
Specifications
| Brand | Schlage |
|---|---|
| Model / SKU | ALX50R LAT 613 14-042 |
| Product type | Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard |
| ANSI/BHMA grade | Grade 2 |
| Finish | Oil-Rubbed Bronze – BHMA 613, US10B |
| Configuration | Latitude Lever, FSIC Core, Anti-Friction Fire Deadlatch, Non-handed |
Questions and answers
Will it fit my existing door?
Most commercial cylindrical locks use a 2-1/8" bore with a 2-3/4" backset. Check the backset and door thickness in the specifications, or ask us.
Is it handed?
Most lever locks are field reversible. If the specifications list a hand, order the matching hand.
Questions about fit, finish or keying? Call Security Lock Supply at (877) 202-8118.
