Description

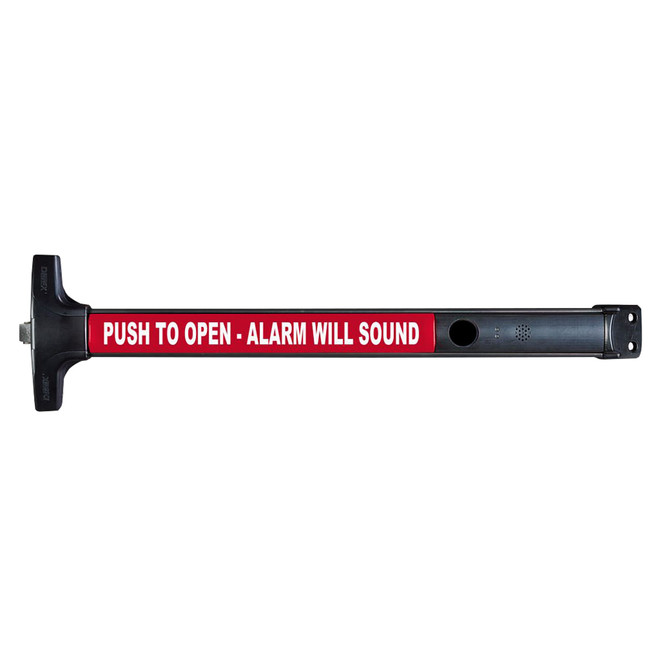

Detex V40 EB W CD 711 99 36 MC65 Value Series Wide Stile Rim Exit Device
The Detex V40 EB W CD 711 99 36 MC65 is a value series wide stile rim exit device, finished in Black Anodized (711). Configuration: Cylinder Dogging, 99 Surface Strike, Weatherized Battery Operated Alarm Less Cylinder, 36" Device.
About this exit device
Exit devices (panic bars) let anyone leave with a single push on the bar, which is why building codes require them on many assembly, school and commercial egress doors. The device type sets how the door latches: a rim device latches to a strike on the frame, surface vertical rod (SVR) and concealed vertical rod (CVR) devices latch at the top and bottom of the door, and a mortise device uses a lock body set into the door edge. Outside access depends on the trim you pair with it.
Features
- Exit Alarm with 9 volt Battery (EB)
- Weatherized Exit Alarm (EBxW)
- Electric Dogging (ED)
- Delayed Egress (EE)
- Exit Alarm Hardwired 24VDC (EH)
- Hardwired 24VAC/DC Exit Alarm with Remote Signal (EHxR)
- Electric Integration (EI)
- Delayed Egress with Magnetic Lock (EM)
Specifications
| Brand | Detex |
|---|---|
| Model / SKU | V40 EB W CD 711 99 36 MC65 |
| Product type | Value Series Wide Stile Rim Exit Device |
| Finish | Black Anodized – BHMA 711 |
| Configuration | Cylinder Dogging, 99 Surface Strike, Weatherized Battery Operated Alarm Less Cylinder, 36" Device |
Questions and answers
Do I need fire exit hardware?
Doors that are fire rated need fire exit hardware (usually marked with an F in the model number), which has no mechanical dogging. Check the label on the door and frame, or ask us.
Does it come with outside trim?
Exit devices are often sold without trim so you can choose the outside function. Check the specifications on this page or call us to match a lever, pull or cylinder trim.
Questions about fit, finish or keying? Call Security Lock Supply at (877) 202-8118.
