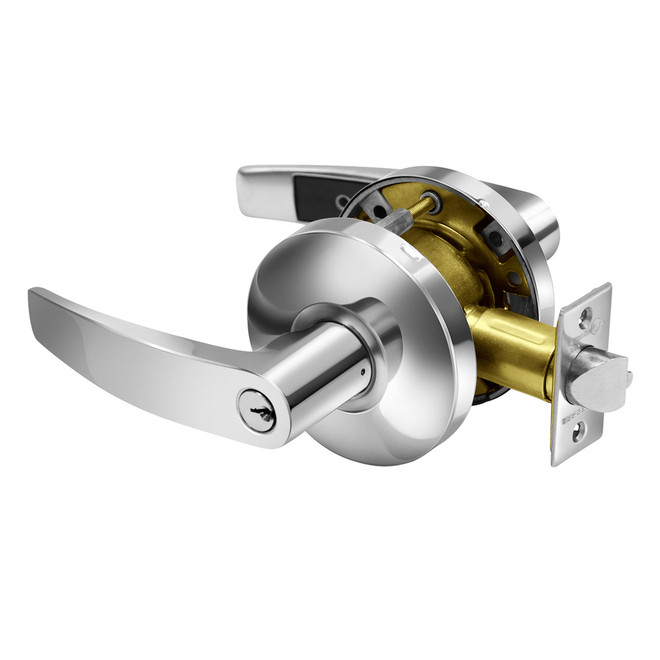

28-65G05 KB 26 Sargent Cylindrical Lock

Images may not represent actual product and finish.

28-65G05 KB 26 Sargent Cylindrical Lock Entry/Office, Grade 2, Cylindrical Lever Lock, KB Design, Bright Chrome

$239.32 $407.00
(You save $167.68)
SKU:
28-65G05 KB 26

Description

28-65G05 KB 26 Sargent Cylindrical Lock

  • Finish: 625/US26
  • Series: 6500-Line Bored Lever Locks
  • Type: Locks, Cylinders, Cores, Keyblanks
  • Sub Type: Cylindrical Lock
Function
05-Entrance or Office
ANSI Function
F81 - Office
Lever/Knob Design
B - Lever
Rose/Escutcheon Design
K - Rose
Cylinder Type
Conventional Cylinder
Num Pins 6
Keyway LA
Keying Keyed Different
Key(s) Cut
Num of Keys 2
Hand Not Handed
Thickness 1-3/8" - 1-3/4"
Latch Number 05-2182
Latch Type Dead Latch (Guarded)
Latch Backset Dim 2-3/4"
Lock Face Size 2-1/4" x 1-1/8"
Bolt Protection 1/2"
Strike Number 808
Strike Type ASA
Strike Height 4-7/8"
Strike Width 1-1/4"

The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.

Windstorm certified and has several function options.

The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.

  • For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only
  • Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional (20- Prefix)
  • Cylindrical Housing: Steel zinc dichromate finish
  • Front: Wrought brass and stainless steel;
  • 2-1/4" (57mm) x 1-1/8"(29mm)
  • Strike: 600 Curved Lip, Brass or Stainless Steel Standard, 808 ANSI Curved Lip available (28- prefix), 505 Full Lip strike available (14- prefix)
  • Hand: Universal, not handed
  • Latch: Brass 1/2" (13mm) throw
  • Keys: Two, nickel silver
  • Cylinder: Brass, 6 pin, LA keyway standard
  • Finishes : 3, 4, 10, 10B, 26, 26D
  • (No Split Finish)
  • Door Prep: ANSI A115.2 (161) Modified
  • Minimum Stile: 4-1/2" (114mm)
