Description

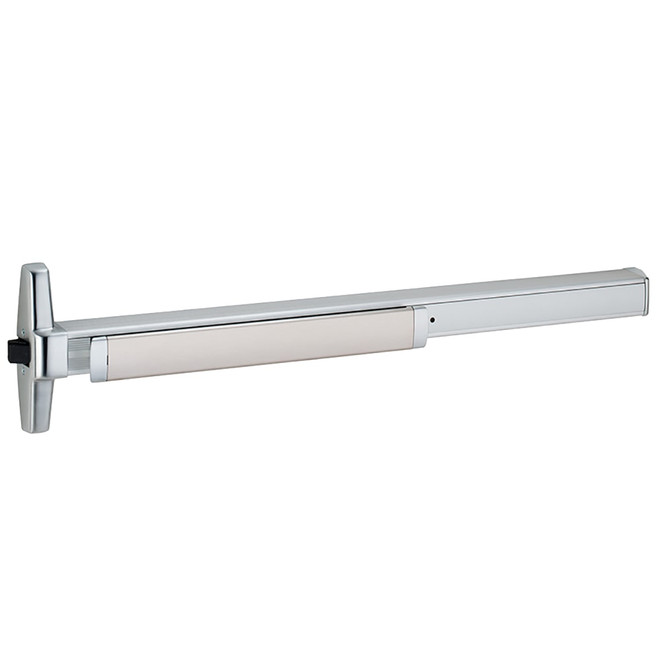

35AEO 3 26D Von Duprin Exit Device
- Finish: 626/US26D
- Series: 35A Series Rim Exit Device
- Type: Exit Devices
- Sub Type: Exit Device
| Physical Appearance | Narrow Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only |
| Device Length | 36 In. |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Includes Trim | No |
| Minimum Stile Size | Narrow |
| Door Material | Metal or Wood |
| Door Width | 26 In. - 36 In. |
| Door Thickness | 1-3/4 In. |
| Fire Rated | No |
33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (Signal Switch) option is used. 33A/35A fits door stiles as narrow as 1 3/4". Hex key dogging standard. Device Lengths: 3' 2'4" to 3', 4' 2'10" to 4'.
Devices are ANSI A156.3 – 2001 Grade 1.
The 35A has a smooth mechanism case and rim device is non-handed except when the SS (signal switch) option is used.
- Device lengths: 3' 2' 4" to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm)
- Door size: Device centerline from finished floor 39 13/16" (1011 mm) 39 11/16" (1008 mm) with Mullion
- Center case dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar Depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3 /4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes 13 /4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
