Description

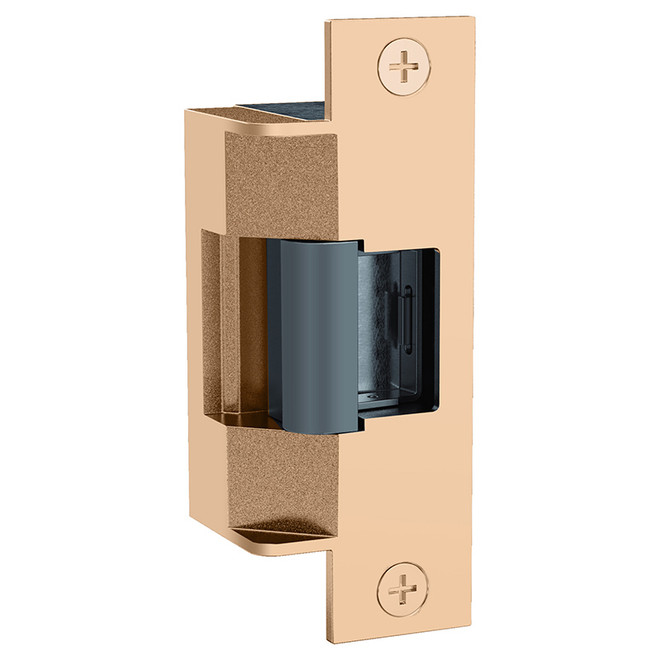

7501 612 HES Electric Strike
- Finish: 612/US10
- Series: 7501 Series Electric Strikes
- Type: Electric Strikes, Bolts, Magnets
- Sub Type: Electric Strike
| Function | Field Selectable (Safe/Secure) |
| Operating Voltage | 12/24VDC |
| Amp Draw | .45 Amps @ 12VDC, .25 Amps @ 24VDC |
| Keeper Size | 3/4 In. |
| Configuration | Centered |
| Use With | Cylindrical Locks |
| Faceplate Size | 4-7/8 In. X 1-1/4 In. |
| Faceplate Shape | Flat Face, Square Corners |
| Pre-Load | 15 Lbs |
| Fire Rated | Yes |
| Switch Type | None |
| Frame Application | Metal or Wood |
The 7501 series electric strike is ideal for fire-rated applications with pre-load conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The heavy duty stainless steel construction provides the strength and durability required to accommodate fire-rated latchbolts up to 3/4" throw.
The 7501 series is an ideal electric strike for fire-rated applications and has a heavy duty stainless steel construction.
The 7501 series provides strength and durability required to accommodate fire-rated latchbolts up to 3/4" throw.
- UL 10C, fire-rated, 3 hour (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL 1034, burglary-resistant listed
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- MEA New York City accepted
- Patent #5,484,180
