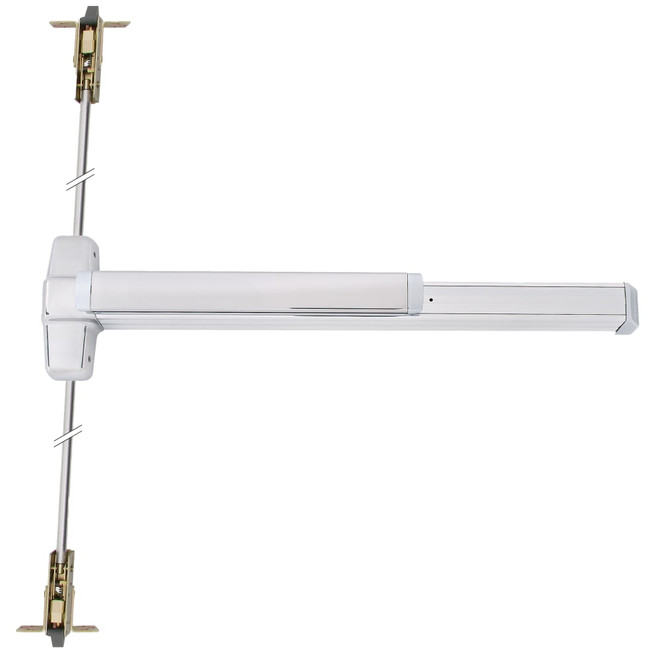

9947EO 3 26D Von Duprin Exit Device
- Finish: 626/US26D
- Series: 9947 Series Concealed Vertical Rod Exit Device
- Type: Exit Devices
- Sub Type: Exit Device
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Concealed Vertical Rod |
| Device Length | 36 In. |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Strike Top | 388 |
| Strike Bottom | 385A |
| Includes Trim | No |
| Minimum Stile Size | 4-1/4" |
| Door Material | Hollow Metal |
| Door Width | 2 Ft. 4 In. - 3 Ft. |
| Door Height | 6 Ft. 8 In. - 8 Ft. 4 In. |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch). Finishes - US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 & 643E. US15 and US32D available with 98 Series only.
Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device.
The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1. The 9947 device has a grooved case and comes in several available finishes.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm)
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
- Door undercut: 1 /4" (7mm) recommended
- Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
