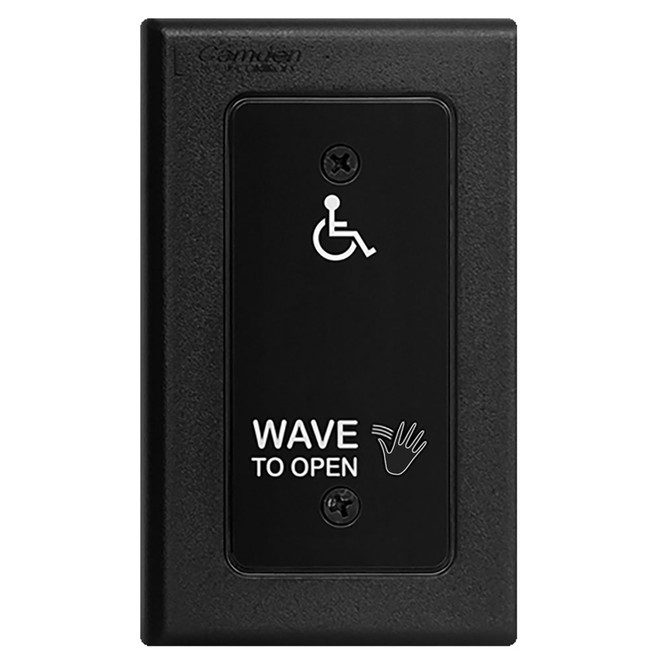

CM-325/42

CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.

• Technology: Active Infra-red, utilizing microburst sensing technology
• Voltage: 12-24V AC/DC
• Contact Type:
  • CM-331/333/324/325: (1) SPDT Form 'C'
  • CM-332: (2) SPDT Form 'C'
• Contact Rating:
  • CM-331/332/333: 3 Amps @ 30 V
  • CM-324/325: 5 Amps @ 30 V
• Current Draw:
  • CM-331/332: 40 mA
  • CM-324/325: 60 mA
• Wireless:
  • CM-330: Built-In
  • CM-331/332/333: Optional Plug-In
• Wireless Frequency:
  • CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
• Battery:
  • CM-330/333:
    • (2) 'AA' alkaline, -0ºF to +153º F (-18ºC to +85º C)
    • (2) AA Lithium Batteries (optional), -4ºF to +153º F (-20ºC to +85º C)
• Battery Life: Alkaline: 2 years with 100 activations per day
• Adjustable Operating Range:
  • CM-331/332: 1"- 28" (25mm-711mm)
  • CM-330/333: 1"-12" (25mm-304mm)
  • CM-324: 1"-30" (25.4mm-762mm)
  • CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
• Time Delay:
  • CM-330/331/332/333: 3-30 Seconds
  • CM-324/325: 1-5 Seconds
• Operation: Selectable Fail Safe/Fail Secure
• Montion Sensing Modes:
  • CM-331/332/333: Momentary, Momentary with Alarm, Maintained
  • CM-330/324/325: Momentary
• Relay Operating Modes:
  • CM-332: Event, Sequence, Security, Toggle
  • CM-331: Event, Toggle
  • CM-330/333/324/325: Event
• Input: CM-331/332/333: REX, Door Contact
• Blue/Green/Red Light Ring: CM-331/332: Optional
