Description

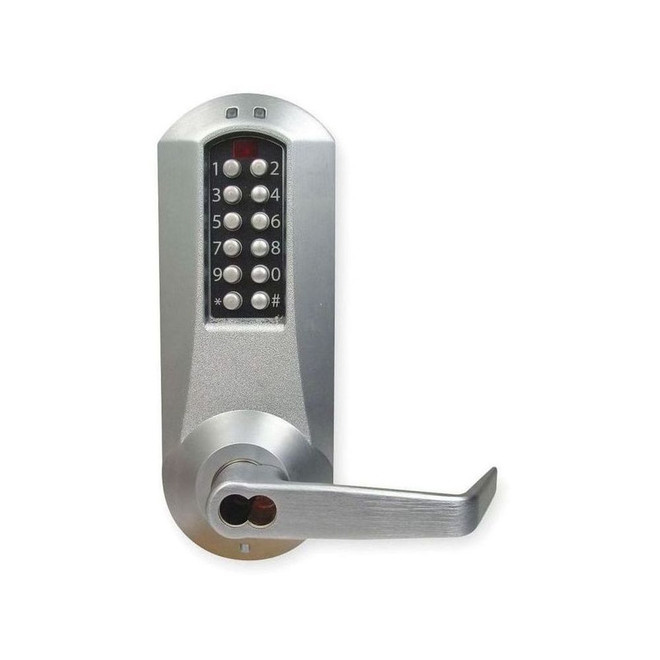

E5066RWL-626-41 Kaba Access Pushbutton Lock
- Finish: 626/US26D
- Series: E-Plex 5000 Series
- Type: Integrated and Pushbutton
- Sub Type: Pushbutton Lock
| Series Name | Eplex |
| Lock Platform | Mortise Lock |
| Cylinder Type | Sargent LFIC Less Core |
E-Plex 5000 Mortise Lock, Winston Lever, 100 Access Codes, 3,000 Audit Events, Sargent LFIC Prep, Less Core, Satin Chrome
The E-Plex 5000 Series eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
- Construction: Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
- Door Handing:
- Cylindrical and E-Plex Mortise—Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Exit Trim—Non-handed
- Backsets:
- Cylindrical—2 1⁄8" (70 mm), 2 3⁄8" (60 mm)
- Mortise—2 3⁄4" (70 mm)
- Exit Trim—Varies by exit device type
- Latch:
- Cylindrical—1⁄2" (13 mm) latch, 3⁄4" (19 mm) latch (optional)
- Mortise—3⁄4" (19 mm) latch, 1" (25 mm) deadbolt (optional)
