Description

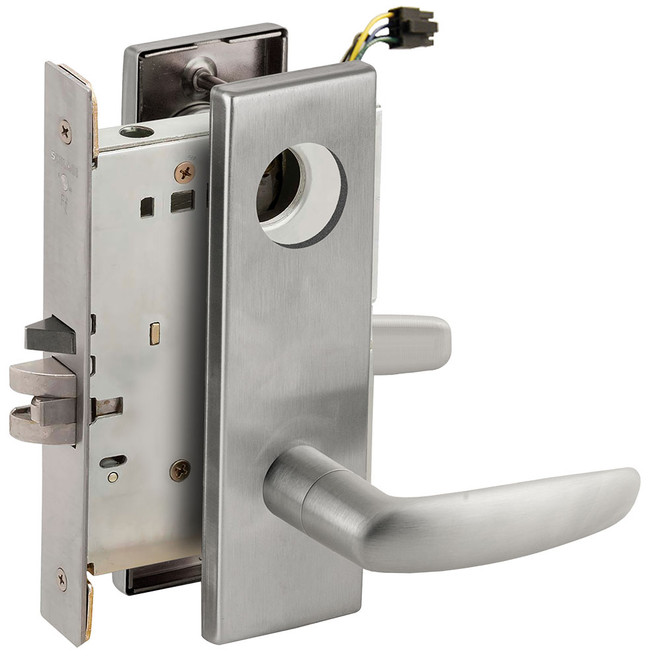

L9092EUL 07N 626 RX Schlage Lock Electric Mortise Lock
- Finish: 626/US26D
- Series: L9090 Series Electrified Mortise Lock
- Type: Electric Locks
- Sub Type: Electric Mortise Lock
| Function | |
| Lever/Knob Design | 07 - Lever |
| Rose/Escutcheon Design | N - Escutcheon |
| Cylinder Type | Less Cylinder |
| Hand | Field Reversible |
| Door Thickness | 1-3/4 In. |
| Bolt Protection | 3/4 In. |
| Strike Number | 10-072 |
| Strike Type | ASA |
| Strike Height | 4-7/8 In. |
| Strike Width | 1-1/4 In. |
| Dust Box | Plastic |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC/24VDC |
| Amp Draw | 400mA |
| Switch Type | RX |
The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
