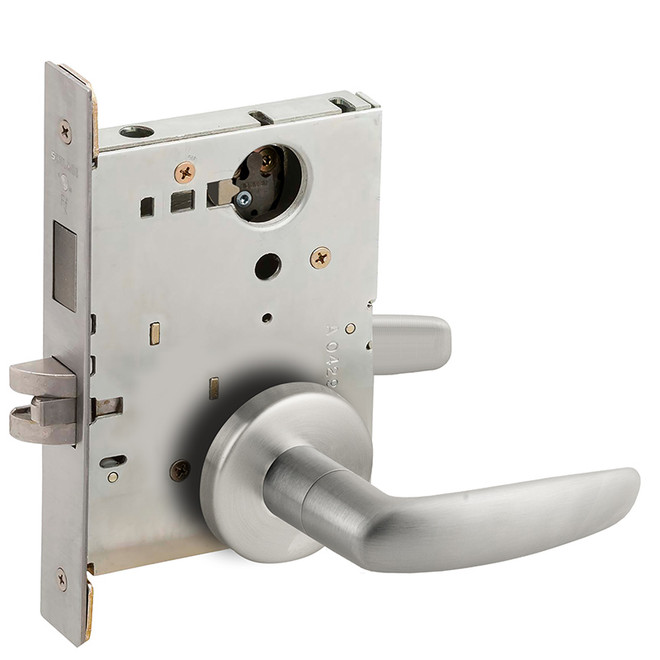

L9465L 07B 626 Schlage Lock Mortise Lock

• Finish: 626/US26D
• Series: L9000 Series Mortise Lock
• Type: Locks, Cylinders, Cores, Keyblanks
• Sub Type: Mortise Lock

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.

Lock bodies are field-reversible without disassembly

Schlage L Series Extra Heavy Duty, Grade 1 Mortise Locks are built to withstand the rigors of daily use without fail.  Lock bodies are field-reversible without disassembly.

• Handing: L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
• Door Thickness: 1 3/4” (44 mm) standard. 1 3/8” (35 mm) to 2 1/2” (64 mm) optional. Over 2 1/2” (64 mm) door ranges vary by function. No escutcheon available for 1 3/4” (44 mm) doors standard. 2” to 2 3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1 3/4”.
• Backset: 2-3/4” (70 mm) only.
• Armored Front: L9000 Series: 1 1/4” x 8” x 7/32” (32 mm x 203 mm x 6 mm) standard. 1 1/16” x 8” x 1 7/32” (27 mm x 203 mm x 6 mm) optional. L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
• Case Size: L9000 Series: 4 7/16” x 6 1/16” x 1” (113 mm x 154 mm x 25 mm) L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
• Spacing: Knob or lever to cylinder, 3 7/8” (98mm); knob or lever to thumbturn hub, 2 11/16” (68mm).
• Bolts: 1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.
• Exposed Trim
• Knobs:  #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D-Series knobs.
• Levers: Forged brass or bronze and cast stainless steel. Designs available to match D-Series levers. 93 Lever Design: Extruded brass, bronze or stainless steel.
• Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
• Trim Combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
• Strike: L9000 Series: ANSI curved lip strike 1 1/4” x 4 7/8” (32 mm x 124 mm) x 1 3/16” (30 mm) lip to center with dust box standard. L400-Series: 1 1/8” x 3 5/8” (29 mm x 92 mm) with dust box.
• Cylinder & Keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
• Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
