Description

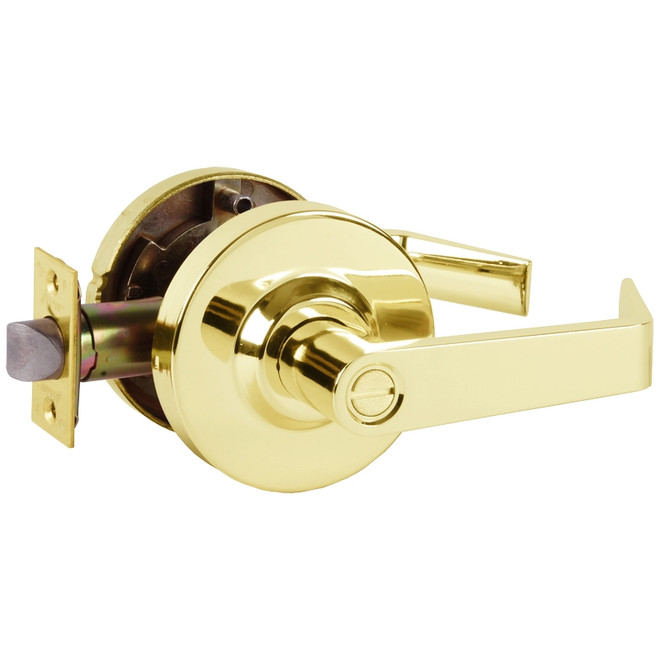

MLX72SB 3 Arrow Cylindrical Lock
- Finish: 605/US3
- Series: MLX Series Grade 2 Cylindrical Lever Locks
- Type: Locks, Cylinders, Cores, Keyblanks
- Sub Type: Cylindrical Lock
| Function | 72-Privacy |
| ANSI Function | F76 - Privacy |
| Lever/Knob Design | S - Sierra |
| Rose/Escutcheon Design | B - Rose |
| Hand | Not Handed |
| Thickness | 1-3/8" - 1-3/4" |
| Latch Number | R23 |
| Latch Type | Spring Latch (Unguarded) |
| Latch Backset Dim | 2-3/4" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Protection | 1/2" |
| Strike Number | 306 |
| Strike Type | ASA |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Combination |
The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications.
The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty.
- Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/4" (69.85mm)
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
- Freewheeling Lever
- Warranty – Ten Year Warranty
- Handing – Non-handed
- Packaging – 6 per case
- Strike – 4-7/8" ANSI (123.83mm)
- Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
- Keys – 2 brass keys
