Description

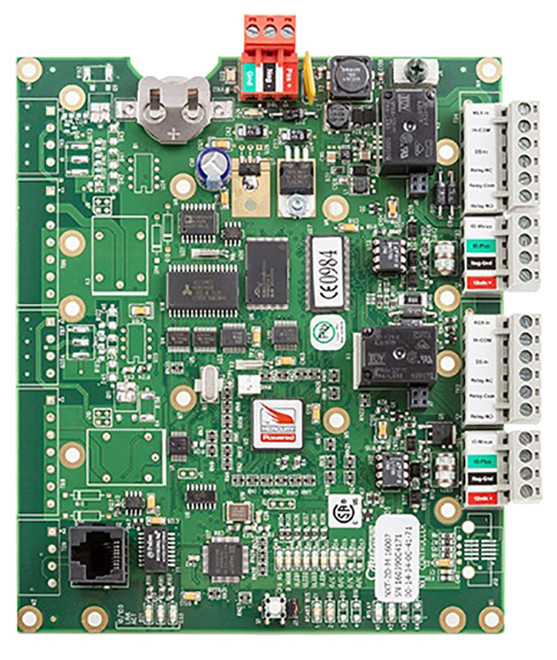

NXT-2D Keri Systems Access Control
The NXT-2D Controller is built for today's IT environments. By using an existing TCP/IP network, controller cabling costs can be eliminated. Or, if building a new network, they can be reduced up to 50% over traditional hard-wired access systems by using inexpensive, CAT-5 cable. The NXT-2D is designed to be extremely intelligent with little reliance on network tra c for decision making, allowing it to be thrifty with any network's valuable bandwidth. With Ethernet functionality built directly into the controller, Keri's proprietary MAC addressing scheme allows for reliable hardware discovery and true one-button autocon guration. To expand the system's exibility, up to two companion 4X4 Input/Output boards (NXT-4X4) can be added - one to each of the controller's RS-485 trunks (buses). Customers can choose between Keri's line of highly secure, 4-wire NXT Series Proximity Readers with reader supervision that also provide In/Out reading capability (4 Readers), or any reader with a standard Wiegand output or Keri's MS Series Proximity Readers via the NXT-RM3 Reader Interface Module. To manage the system, Doors.NET software has much of the same look and feel as Keri's acclaimed original DoorsTM software, but with the added functionality of a Client/Server architecture.
- Managed by Doors.NET: SQL-based, Client/server Software, multiple concurrent sites, no third-party client license fees
- Fully supervised with encrypted data between cards/readers
- Utilizes existing CAT-5 cabling or existing networks.
- Network Appliance architecture utilizing two or four door panels.
- Coupled with optional interface boards for I/O and industry-standard reader formats.
- Thousands of doors per system; 50,000 card holders per controller.
- Flash programmable and reprogrammable
