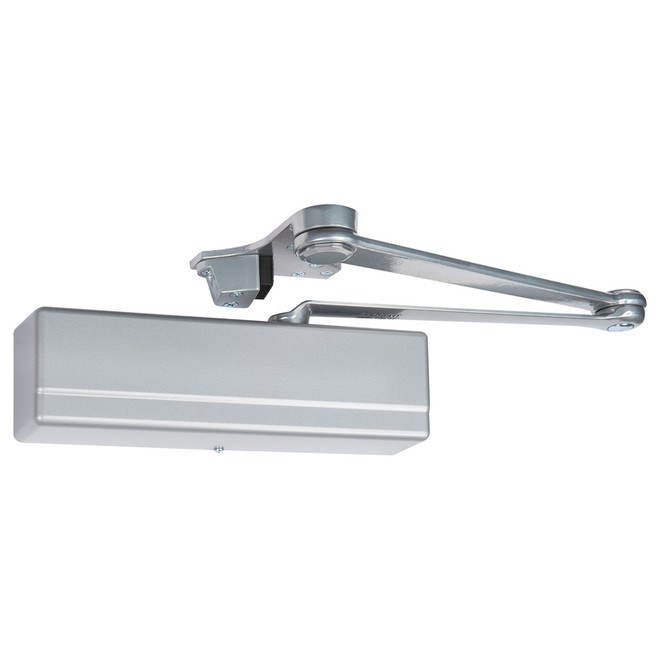

1431-CPS TB EN Sargent Door Closer

Images may not represent actual product and finish.

1431-CPS TB EN Sargent Door Closer Surface Door Closer, Heavy Duty Parallel Arm with Compression Stop, Thru Bolts, Sprayed Aluminum Enamel

$541.18 $979.00
(You save $437.82)
SKU:
1431-CPS TB EN

Description

1431-CPS TB EN Sargent Door Closer

  • Finish: 689/US28
  • Series: 1431 Surface Door Closers
  • Type: Door Closers and Operators
  • Sub Type: Door Closer
Type Surface
Technology Hydraulic
Mounting Location Push Side
Mounting Style Parallel Arm
Hold Open No
Closer Size Adj. 1 to 6
Arm Type Parallel Arm Spring Stop
Hand Non-Handed
Stop Compression Stop
Back Check Adjustable
Delay No
Cover Plastic
Through Bolts Yes
Cold Weather Fluid Yes

The 1431 Series is a complete line of aluminum surface door closers for interior and exterior doors with flexibility to meet virtually every application. A full compliment of arms and mounting accessories, with front facing valves make installation and maintenance easy.

ADA compliant except Push Side Track application.

The 1431 Series of surface mounted door closers has been engineered to meet the demands of architects and building owners. The 1431 Series is a complete line of closers for interior and exterior doors with quality and flexibility to meet virtually every application.

• Exceeds 15 Million cycles

• Certified ANSI/BHMA A156.4 Grade 1

• UL 10C listed for positive pressure fire test

• UL / cUL listed for use on fire rated doors

• 25 year limited warranty

• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations

• Self sticking templates supplied for most applications

• Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory

• One door closer body for all applications. All 1431 are non-handed

• Meets ADA requirements in all applications, except Push Side Track application (except track)

• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional

• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment

• 1-1/2" diameter piston for superior door control

• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse

• Retrofits existing SARGE
