Description

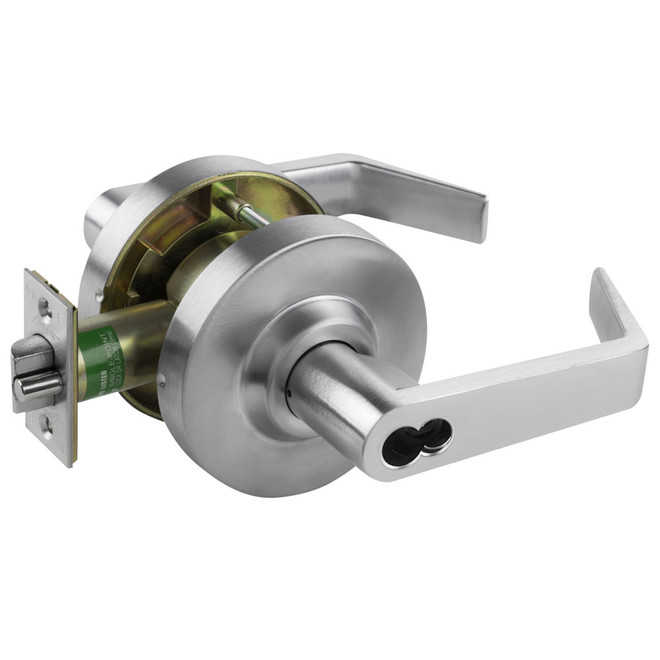

QL81SB 26D IC Arrow Cylindrical Lock
- Finish: 626/US26D
- Series: QL Series Grade 1 Cylindrical Lever Locks
- Type: Locks, Cylinders, Cores, Keyblanks
- Sub Type: Cylindrical Lock
| Function | 81-Entrance |
| ANSI Function | F109 - Entry/Office |
| Lever/Knob Design | S - Sierra |
| Rose/Escutcheon Design | B - Rose |
| Cylinder Type | SFIC Prep Less Core |
| Hand | Not Handed |
| Thickness | 1-3/8" - 1-3/4" |
| Latch Number | Q71 |
| Latch Type | Dead Latch (Guarded) |
| Latch Backset Dim | 2-3/4" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Protection | 1/2" |
| Strike Number | 306 |
| Strike Type | ASA |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Combination |
The QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
The QL Series is a robust Grade 1 cylindrical lever lock.
The QL Series offers a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
- Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/4" (69.85mm)
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
- Freewheeling Lever
- Warranty – Ten Year Warranty
- Handing – Non-handed
- Packaging – 6 per case
- Strike – 4-7/8" ANSI (123.83mm)
- Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
- Keys – 2 brass keys
